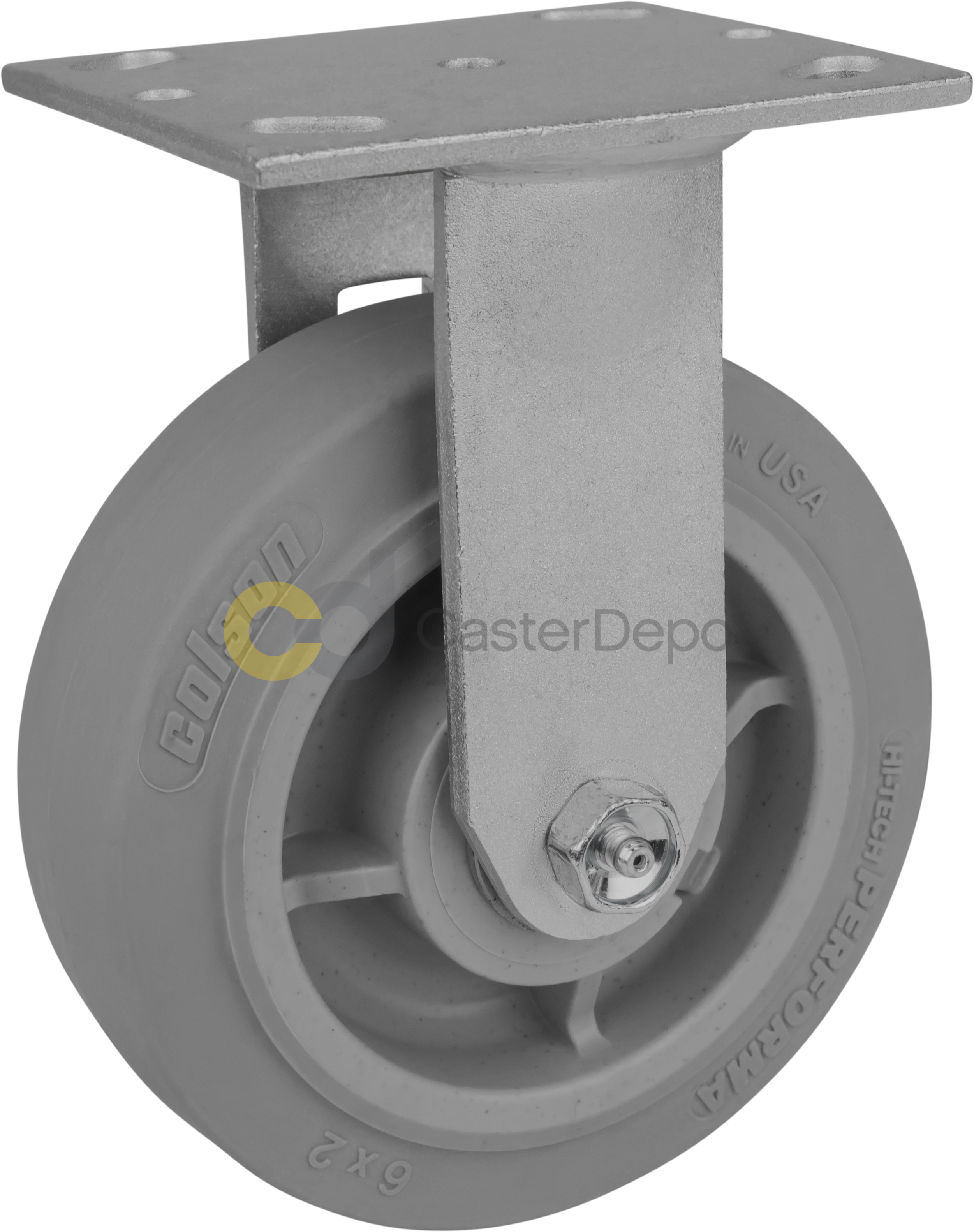

Full Product Specification
| Name | Value | Metric Value |
|---|---|---|
| CD Now Program | No | |
| Overall Height | 10.125 in | 257.175 mm |
| Mounting Type | Top Plate | |
| Capacity - Dynamic | 675 lbs | 306.82 kg |
| Temperature Maximum | 180 °F | 82.2 °C |
| Temperature Minimum | -45 °F | -42.8 °C |
| Greasable Axle | Yes | |
| Wheel Diameter | 8 in | 203.2 mm |
| Wheel Width | 2 in | 50.8 mm |
| Wheel (non-Marking) | Yes | |
| Wheel (count) | 1 | |
| Wheel Tread Material | Performa Rubber | |
| Wheel Tread Color | Grey | |
| Wheel Hub Material | Rubber | |
| Wheel Hub Color | Grey | |
| Wheel Face | Flat | |
| Wheel Hub Type: Spoked, Solid | Solid | |
| Wheel Bearing | Roller Bearing | |
| Wheel Durometer | 65A | |
| Wheel Thread Guard | No | |
| Wheel Zerk | No | |
| Rig Finish / Coating | Zinc Plated | |
| Rig Zerk | Yes | |
| CE Mark | No | |
| Wheel Tread Category | Rubber | |
| Swivel Type | Rigid | |
| Plate Drilled / Tapped | No | |
| Plate Number of Bolt Holes | 4 | |
| Plate Width | 6.25 in | 158.75 mm |
| Plate Length | 4.5 in | 114.3 mm |
| Brake | No |
